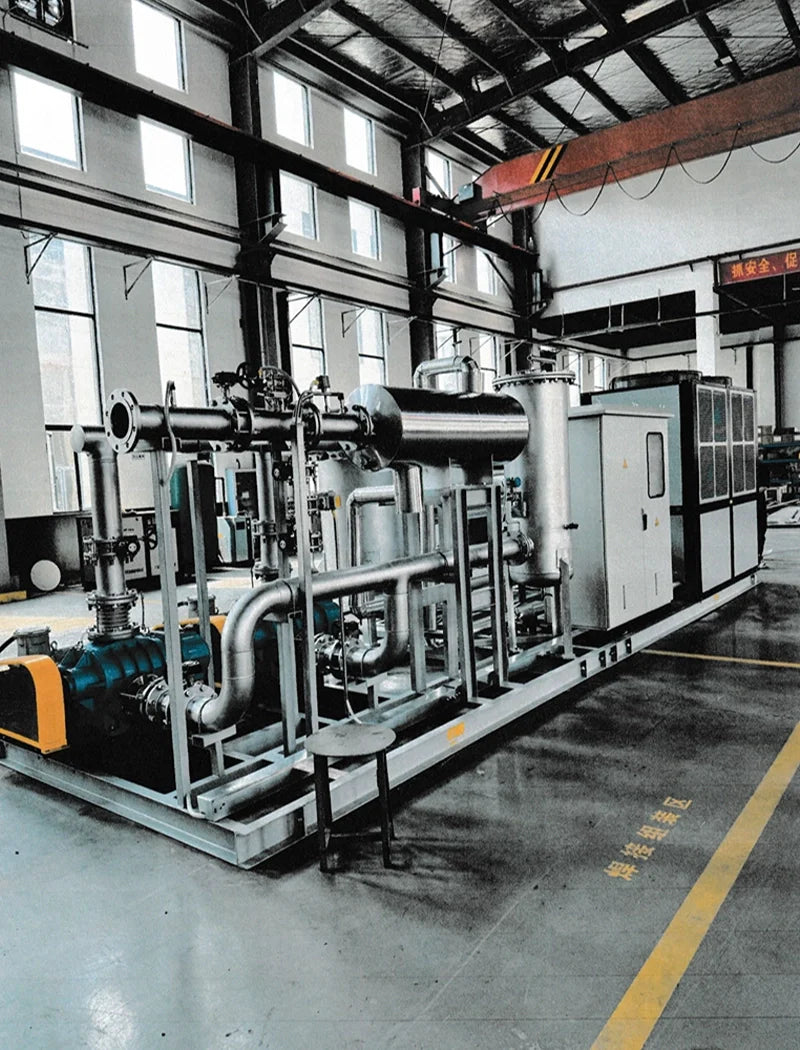

Design and fabrication of a biogas pretreatment system with a processing capacity of 1,200 Nm³/h.
Overall system dimensions:
Length: 10,450 mm × Width: 2,500 mm × Height: 2,270 mm
System Configuration & Technical Specifications
1. Biogas Pretreatment System
o Equipped with an air-cooled chiller unit
o Model: PLM20ADT
o The condenser is upgraded to stainless steel SS304
o Piping specification: 16 mm diameter × 1.5 mm wall thickness
o Cooling fins are also manufactured from SS304 stainless steel
o Custom-fabricated module dimensions:
2,250 mm × 1,320 mm × 1,900 mm
2. Fasteners
o All installation bolts and screws are made of SS304 stainless steel
3. Cable Management
o All cable trays are constructed from SS304 stainless steel
4. Drainage System
o All drain valves are SS304 stainless steel ball valves
Project Highlights
· Designed for high-corrosion biogas environments
· Extensive use of SS304 stainless steel ensures durability, hygiene, and long-term operational stability
· Custom-built system tailored to project-specific process and space requirements
Suitable for integration with downstream biogas utilization or treatment facilities
